Design for 3D Printing

Design for Additive Manufacturing (DfAM) is the practice of engineering a part around how 3D printing actually builds it, rather than simply reprinting a geometry that was designed for another process. It matters because 3D-printed parts don't behave like molded or machined ones: printing builds a part layer by layer, so its mechanical strength is directional. In-plane (X/Y) strength is typically much higher than through-layer (Z-axis) strength, since Z strength depends on adhesion between layers rather than continuous material. A geometry that's structurally sound in one manufacturing process can fail in another if that directionality isn't accounted for.

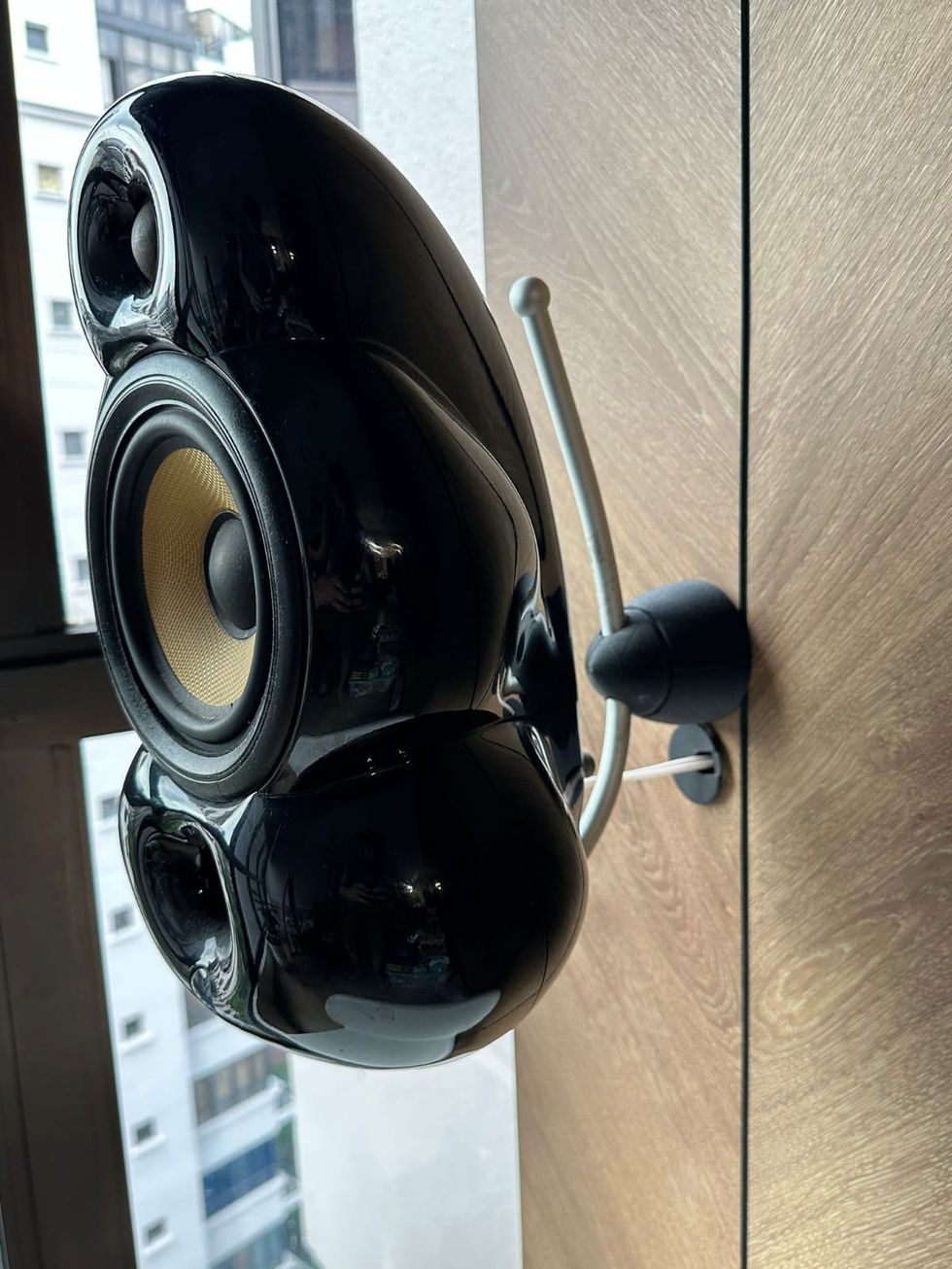

This project is a case in point. A wall-mount bracket for a high-end speaker failed under cantilever loading, the speaker's mass generates a moment about the bracket via the mounting rod, and the original injection-molded geometry couldn't be reprinted as-is. Injection molding produces a part with near-isotropic mechanical properties, but FDM builds are inherently anisotropic: interlaminar bond strength (Z-axis) is typically a fraction of in-plane (X/Y) tensile strength, since Z strength depends entirely on layer adhesion rather than continuous polymer chains. A single-orientation reprint of the original core would concentrate the cantilever's peel/shear stress directly along the weakest layer interface, guaranteeing a repeat failure at the same location.

The fix was to split the core structure into two discrete sections, each oriented so its print plane runs perpendicular to the other's. This distributes load-bearing responsibility across sections rather than relying on a single build orientation to resist multi-axis stress, effectively treating print orientation as a design variable rather than a manufacturing afterthought. The result reproduces the original part's envelope and mounting interface with no compromise to fit or aesthetics, while the underlying structure is engineered specifically for the loading conditions FDM parts actually experience in service.

Applied: DfAM (design for additive manufacturing), anisotropic failure analysis, cantilever/moment loading assessment, reverse-engineered CAD reconstruction, multi-body print orientation strategy.
